15μM 640x512 MWIR Infrared Detector Cooled For Remote Monitoring
System
Product Description
C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors
developed by Global Sensor Technology (GST). It is with the most
popular 640x512/15μm spec for almost all possible applications like
long range surveillance system, handheld thermal imagers, gas
leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio
like products when configured with RS058 integrated stirling
cooler. The dewar design, the cooler dimension, and the
mechanical/electrical interface are almost the same so that the
camera integrators only need to take out their old defective
counterpart and connect our interchangeable C615M RS058 easily for
further internal configuration.
Main Features
- Resolution: 640x512
- Pixel Size: 15μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption
Product Specifications
| Model | C615M MW |
| Material | MCT |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR) |
| Dynamic Range | ≥75dB |
| Number of Output | 4; Up to 10Mpixel/s per Output |
| NETD | F2: ≤17mK
F4: ≤18mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058/RS046 |
| Steady Power Consumption | ≤6W@RS058
≤5W@RS046 |
| Max Power Consumption | ≤12W @ RS058
≤11W @ RS046 |
| Power Supply | RS058: 24V DC
RS046: 32V DC |
| Cooling Time | ≤6min @ RS058
≤5min30s @ RS046 |
| Weight | ≤600g @ RS058
≤350g @ RS046 |
| Dimension (mm) | RS046: 122x46.3x82
RS058: 147x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615M MWIR cryogenically cooled infrared detector is widely
used many areas such as Remote Monitoring System, Flight Vision
Enhancement System, Multi-sensor Payload etc.

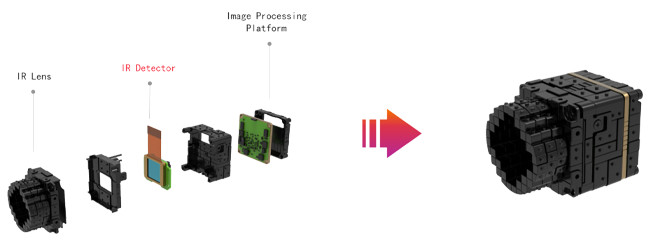

Cooled Uncooled Infrared Detectors
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that
thermal images can be taken on long-term missions. In many high-end
applications, the sensors that capture images require extremely low
temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to
measure the quality of a cryocooler. GSTiR cryocooler has a wide
operating temperature range and excellent reliability. Its MTTF
(Mean Time to Failures) has reached to 10,000 hours, which meets
24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows
you how long on average a part lasts before it breaks and you have
to replace it. On a basic level, it tells you about the quality of
the parts you’re buying. The longer they last, the more value
you’re getting from them.
